PDF FILE - CLICK HERE FOR PRINTABLE WORKSHEET With a single pulley, the pulley must be able to move so that mechanical advantage can be increased. Furthermore, the pulley is turned upside-down. The pulley to the left is suspended and as a consequence the mechanical advantage is increased.

mechanical advantage is its mechanical advantage with 100% efficiency. • However, if you measure a machine's input force and output force, you will find the efficiency is always less than 100%. • A machine's measured mechanical advantage is called actual mechanical advantage.

mechanical advantage, compound pulley systems, the concept of throw, self-adjusting brakes, range of system, throw, internal versus external pulling systems, and the 120 o rule. Mechanical Advantage - The primary purpose of a hauling system is to gain mechanical advantage. There are several ways to calculate mechanical advantage.

Mechanical advantage of a pulley worksheet

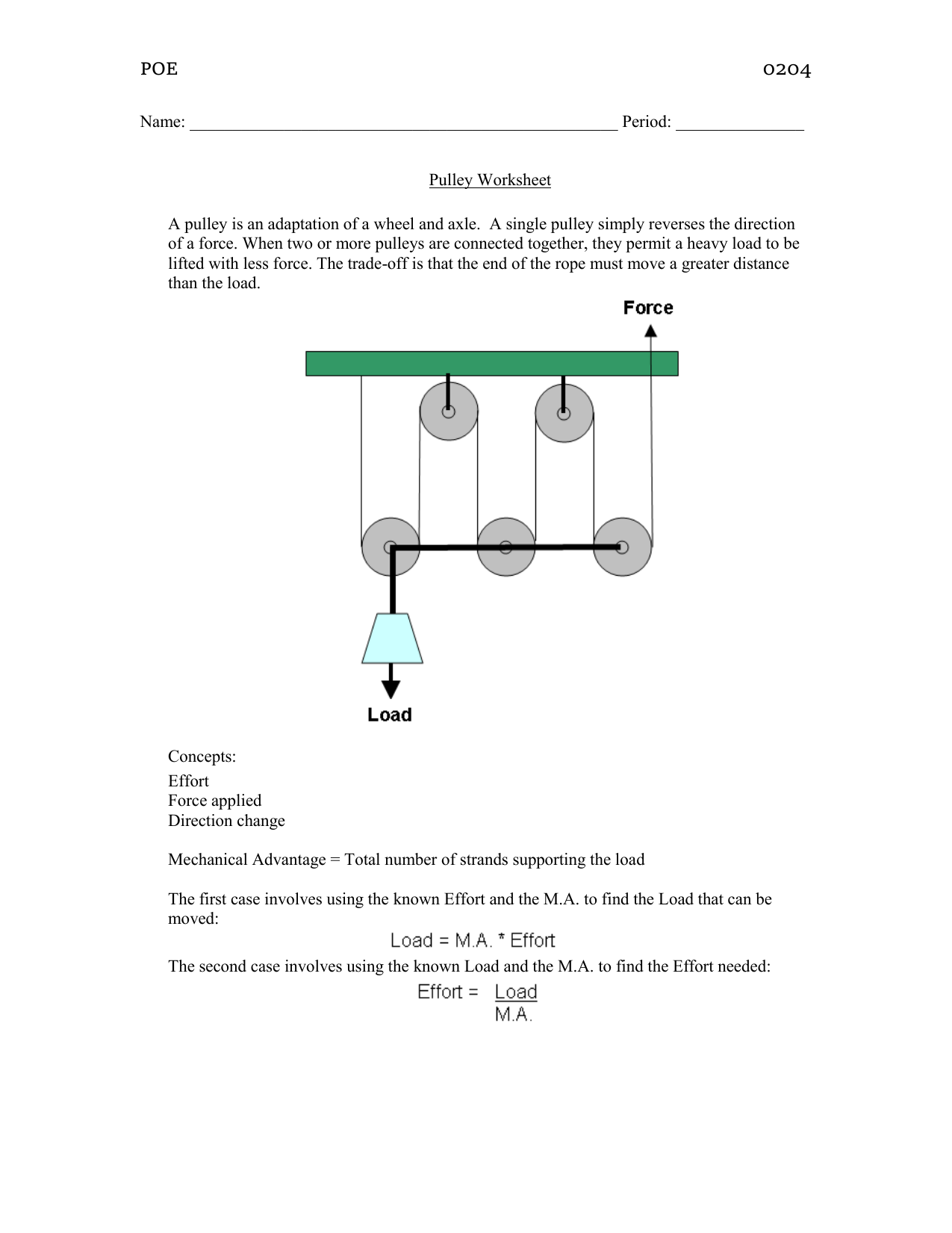

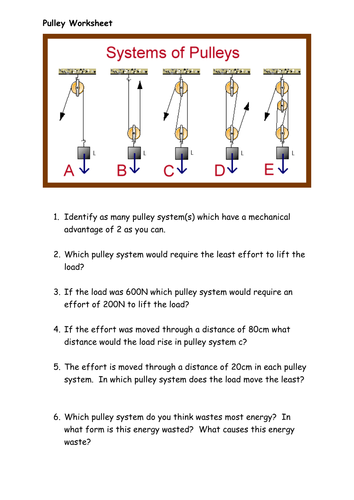

Simple Machines: Lesson 3, Tools and Equipment, Part II - Pulley Worksheet 1 Tools and Equipment, Part II Activity - Pulley Worksheet Instructions/Questions 1. What is the measured weight of your object? Load = _____ 2. How is the Mechanical Advantage of a pulley system calculated? A. Set up your pulley, weight and rope as shown at right.

• Pulley, Single fixed pulley, Single movable pulley, Combination of pulleys, Effect of weight of pulleys. SECTION 1 - OBJECTIVE. 1. The mechanical advantage of a machine is 5. Find the effort necessary to lift 100 N. A. 0.05 N. B. 20 N. C. 50 N. D. 100 N. 2. To calculate the mechanical advantage, divide the resistance force by the. A. Friction

Carlita, Tom, and Jamal are having a contest to see who can build the best pulley. After they finish constructing the pulleys, they measure the input and output forces as well as the input and output work. Below is a chart with the results. Help the three students calculate the mechanical advantage and the mechanical efficiency of each of the ...

Mechanical advantage of a pulley worksheet.

Diagrams of Pulleys Fixed pulley: A fixed pulley changes the direction of a force; however, it does not create a mechanical advantage. Movable Pulley: The mechanical advantage of a moveable pulley is equal to the number of ropes that support the moveable pulley.

33. Mechanical advantage is the number of times the input force is (divided / multiplied) by a machine. 34. An inclined plane allows you to lift a heavy load by using ( more / less) force over a greater distance. 35. When you use a machine, the output work can never be ( greater / less) than the input work. 36.

6. When using a pulley with a mechanical advantage of 1.5, a worker applies 250 N to the pulley. The pulley is used to lift a heavy crate. How much force does the pulley apply to the crate? Given: Find: 7. A nutcracker is used to crack open a crab leg. 15 N of force is applied to the nutcracker and the nutcracker applies 50 N of force to the ...

Mechanical advantage worksheet simple machines lever pulley wedge screw inclined plane wheel and axle often are combined to create complex mechanical machines. Mechanical advantage worksheet calculate the mechanical advantage in the problems with the equation.

Pulleys are cool in that they are a lot like LEGO pieces, as they can be combined and built on top of each other to make more advanced systems or machines. One thing that makes pulleys so amazing is a unique feature they have called mechanical advantage.

Mechanical Advantage Worksheet Simple machines (lever, pulley, wedge, screw, inclined plane, wheel and axle) often are combined to create complex mechanical machines. Simple machines apply mechanical advantage to typically move an output force (load) with an input force (effort), less than that of the output force.

Mechanical Advantage is the ratio of load to effort. Pulleys and levers alike rely on mechanical advantage. The larger the advantage is the easier it will be to lift the weight. In other words, you would need to put less effort into lifting the weight. For a single pulley that is fixed to the ceiling, we would have an advantage of one.

Draw three blank lines next to each pulley. Fill in the blank lines. Report the mechanical advantage. Step 1. Write "T1" next to the puller. The first step is so easy it barely deserves to be called a "step," but write "T1" next to the rope where the rescuers will be pulling. Step 2. Draw three blank lines next to each pulley.

Pulleys 10. The ideal mechanical advantage of a pulley is determined by counting the number of supporting ropes. Look at the following examples. Last one over top does not count! 3.5 m IMA = 1 IMA = 2 IMA = 5 IMA = 5 7.2 10 N 10 N 10 N 5 N 5 N 1 1 2 100 N 1 32 3 4 5 5 100 N 1 2 4 Each rope supports 20 N. Each rope supports 20 N. 100 N = 20 N 5

MECHANICAL ADVANTAGE Mechanical advantage is defined as the ratio of load to effort. Pulley systems rely on this important relationship between load and effort. Pulleys like levers rely on mechanical advantage. higher the mechanical advantage, the easier it is to lift a weight. In

EQUATION: mechanical advantage (MA) SAMPLE PROBLEM: What is the mechanical advantage of a lever that requires an input force of 20 N and lifts an object that weighs 60 N? mechanical advantage (MA) MA 3 Practice Your Skills! Use the equation for mechanical advantage to answer the following questions: 1. Amanda uses a wheelbarrow to lift a load ...

Pulleys perform two distinct functions in mechanical advantage systems. If the pulley is attached to the anchor, it is called a fixed or change of direction pulley. Its job is to change the direction of pull on the rope. If the pulley is attached to the load, it is a movable or mechanical advantage pulley.

Rope rescue calculating ma by counting the lines

SIMPLE MACHINES Student's worksheets Carles Egusquiza Bueno 25 IES ROCAGROSSA - Lloret de Mar Given to students cut up The wheel and axle and the pulley are variants on the lever. A What is a simple machine? A simple machine has got few or no moving parts. B Why is learning the basics of simple machines important?
